• Fraiseuse CNC 4 axes 5 axes

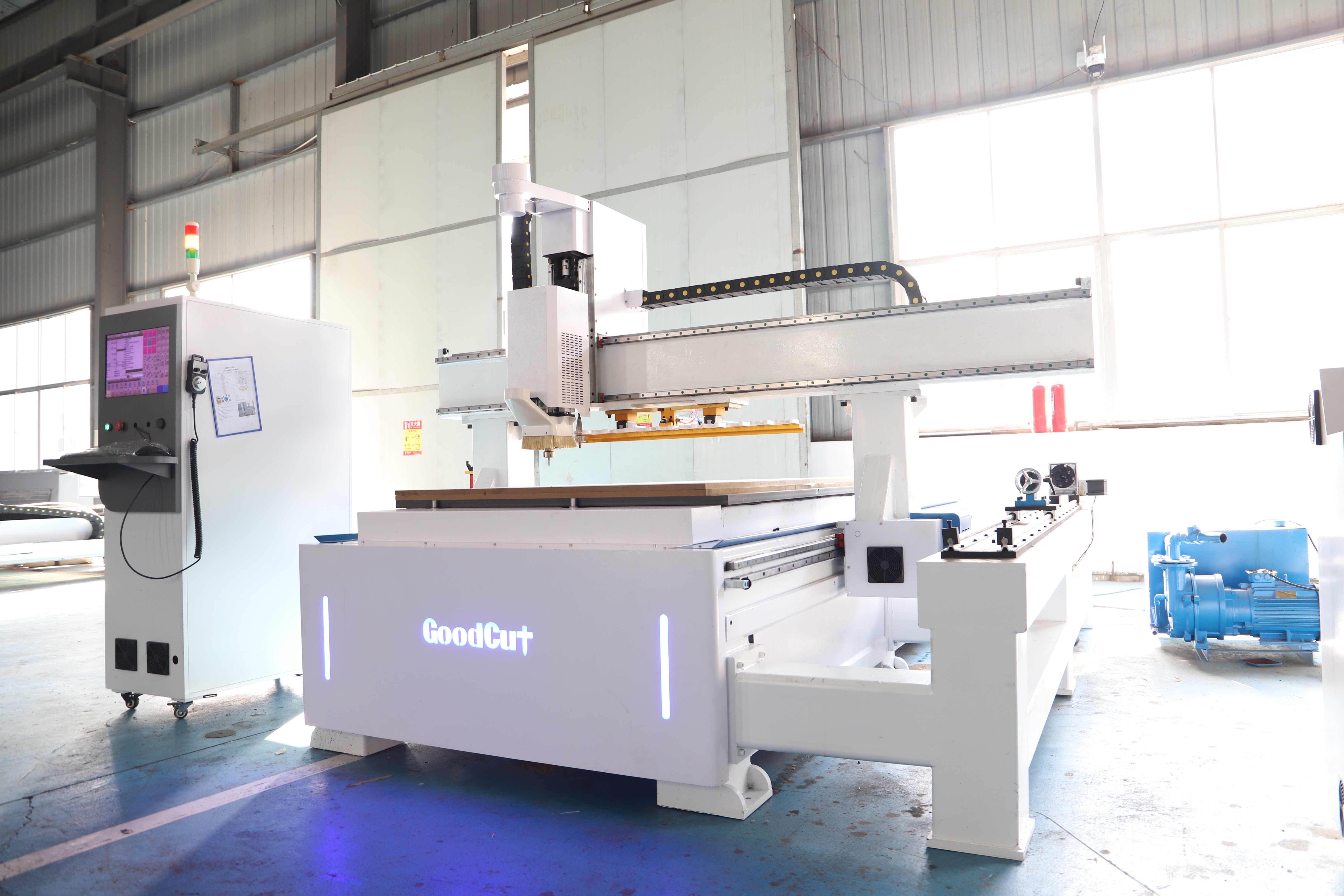

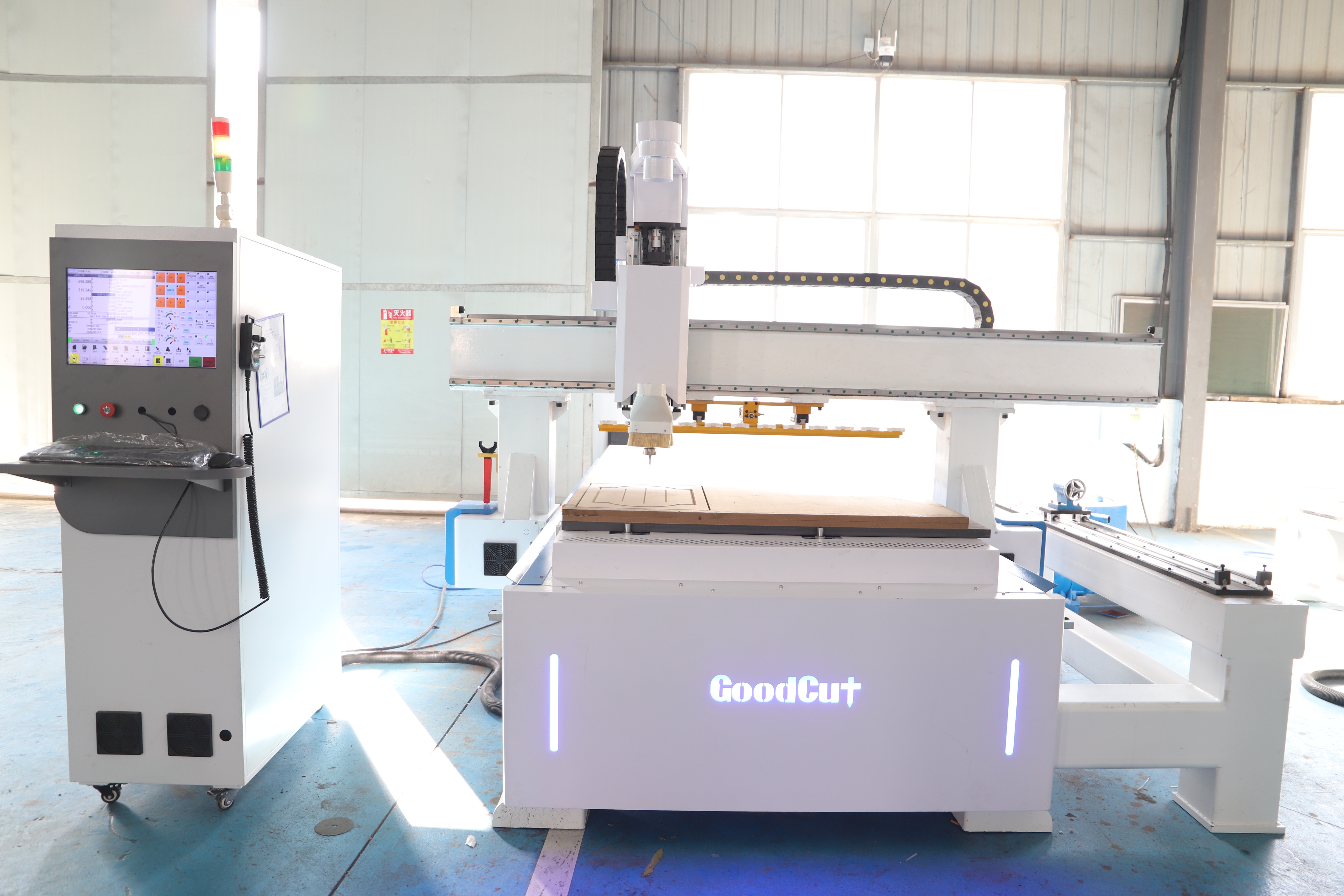

GC1325ATC-R Routeur CNC à changement d'outil automatique linéaire avec dispositif rotatif

changeur d'outil automatique
avec dispositif rotatif
broche de 9kw
moteur et driver servo
machine CNC à bois avec changeur automatique d'outils à 12 positions, moteur servo Yaskawa japonais de haute qualité, Jinan GoodCut CNC Machinery Co.,Ltd.
Description du produit



GC1325ATC-R cnc router (6)

GC1325ATC-R cnc router (8)

GC1325ATC-R cnc router (9)

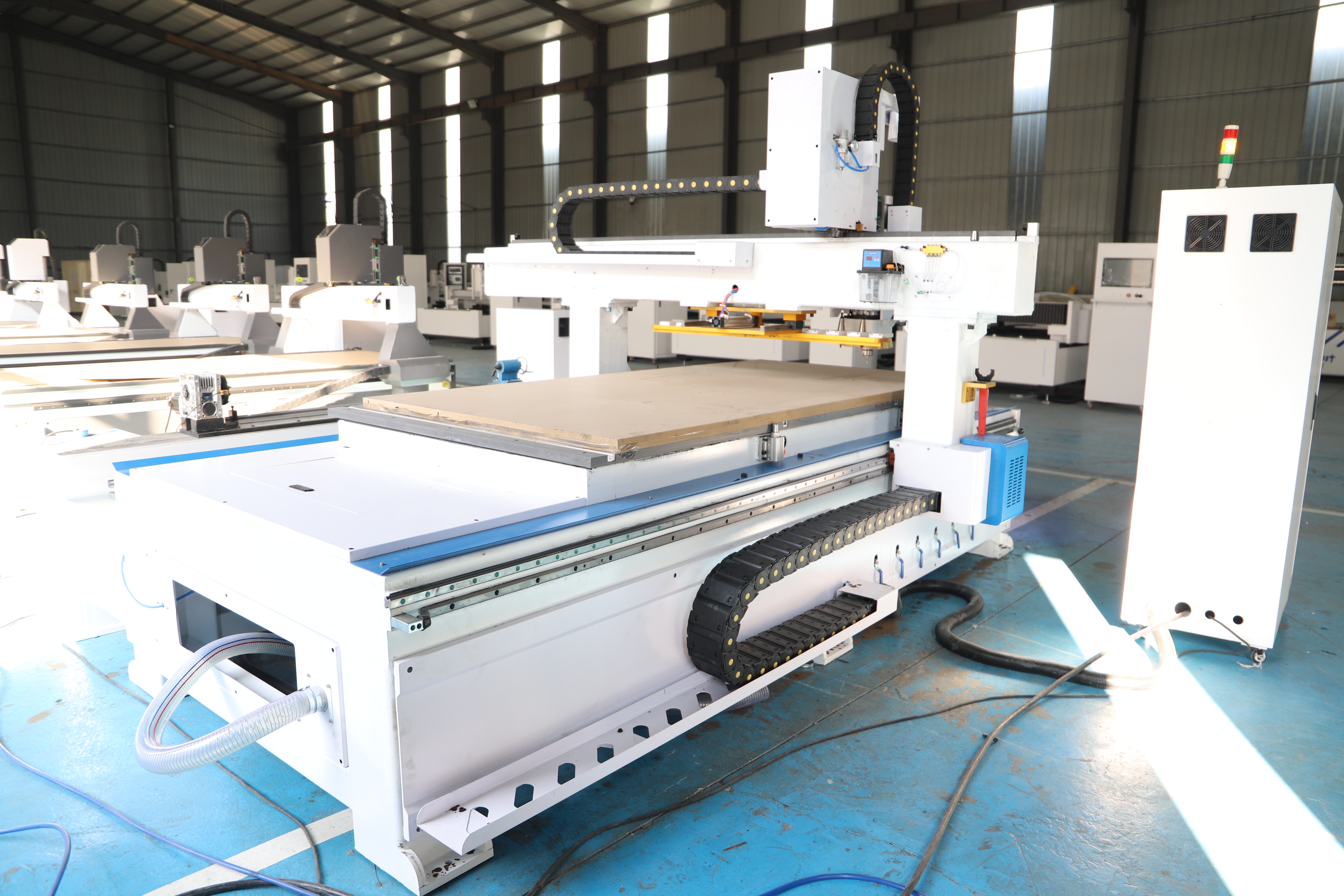

GC1325ATC-R cnc router (11)



Zone de travail effective X, Y, Z1300*2500mm / 1500*3000mm / 2000*4000mm (au choix)
Magasin d'outilsMagasin linéaire à 12 outils
Diamètre rotatifDiamètre 200mm / 300mm / 400mm
BrocheBroche à air HQD / Italie HSD 9kw

tête oscillante

OnduleurFuling / Delta
Moteur et driverMoteur servo Leadshine / Taiwan Syntec  / Japon Yaskawa
Système de contrôleTaiwan Syntec/LNC
TableTable à adsorption sous vide avec rainures en T + pompe à vide 7.5kw
ChâssisChâssis robuste
TransmissionEngrenage à crémaillère X Y, vis à billes TBI Taiwan Z, rails guides HINWIN Taiwan 25mm
LogicielArtcam type3

GC1325ATC-R cnc router (4)

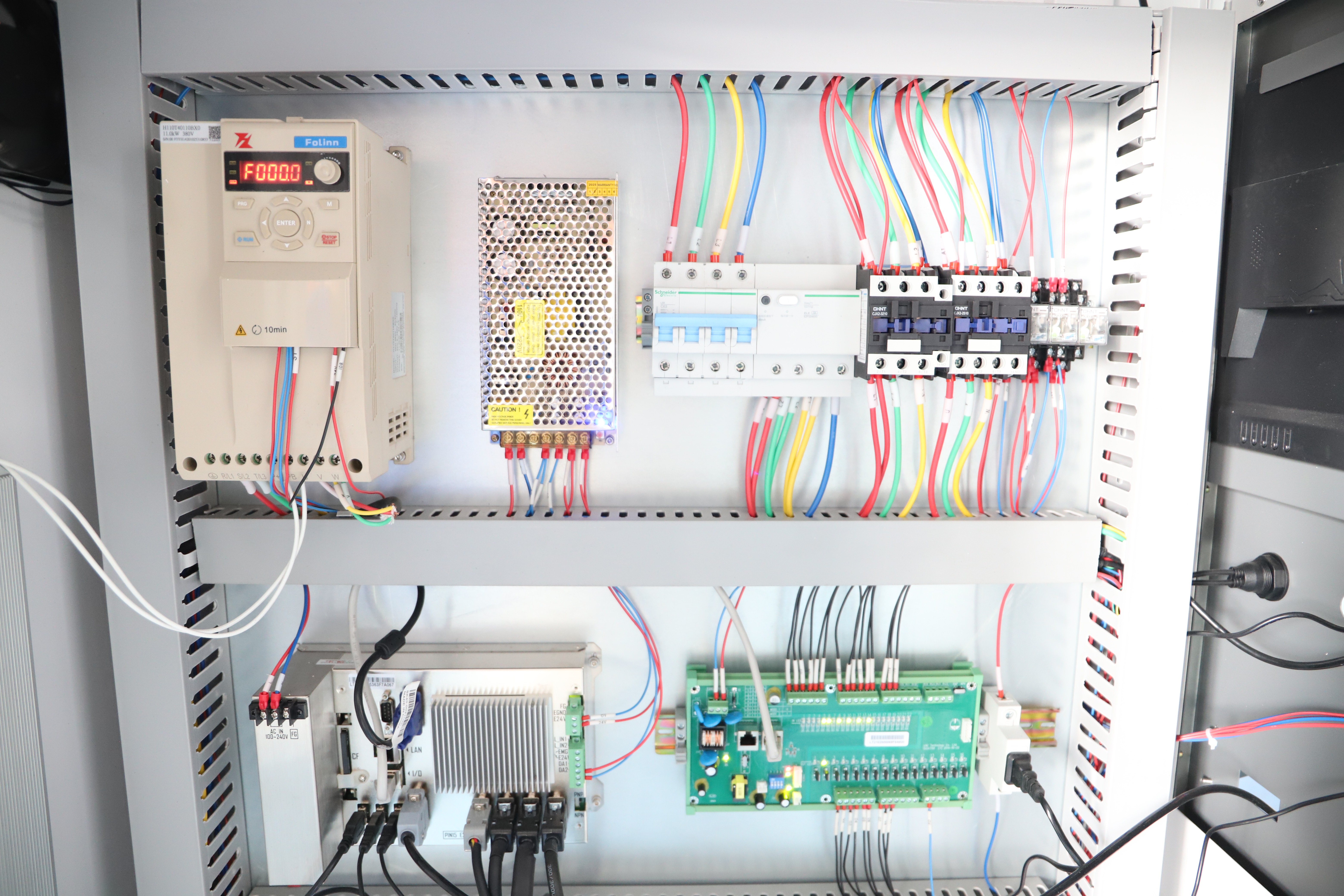

GC1325ATC-R cnc router (16)

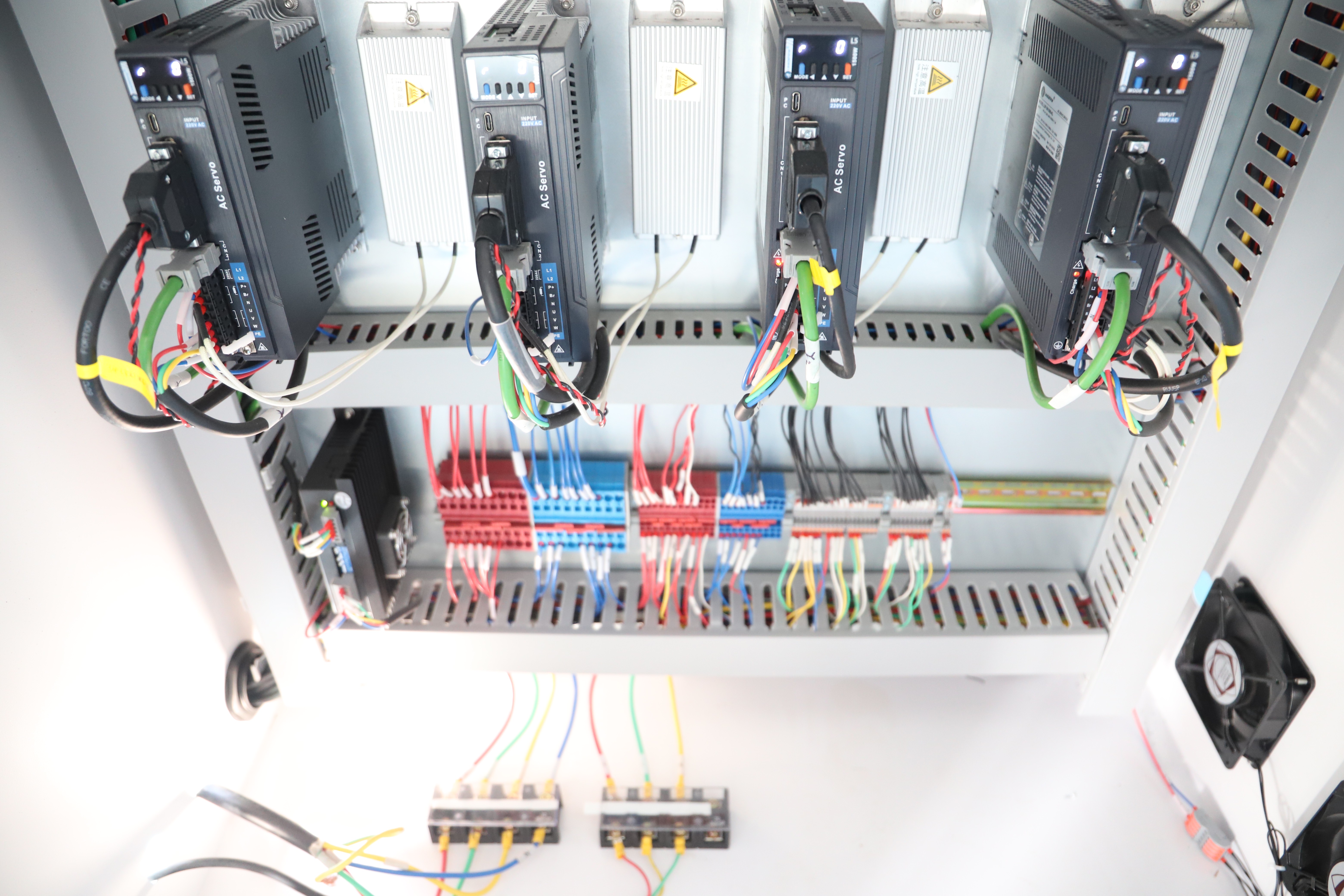

GC1325ATC-R cnc router (17)

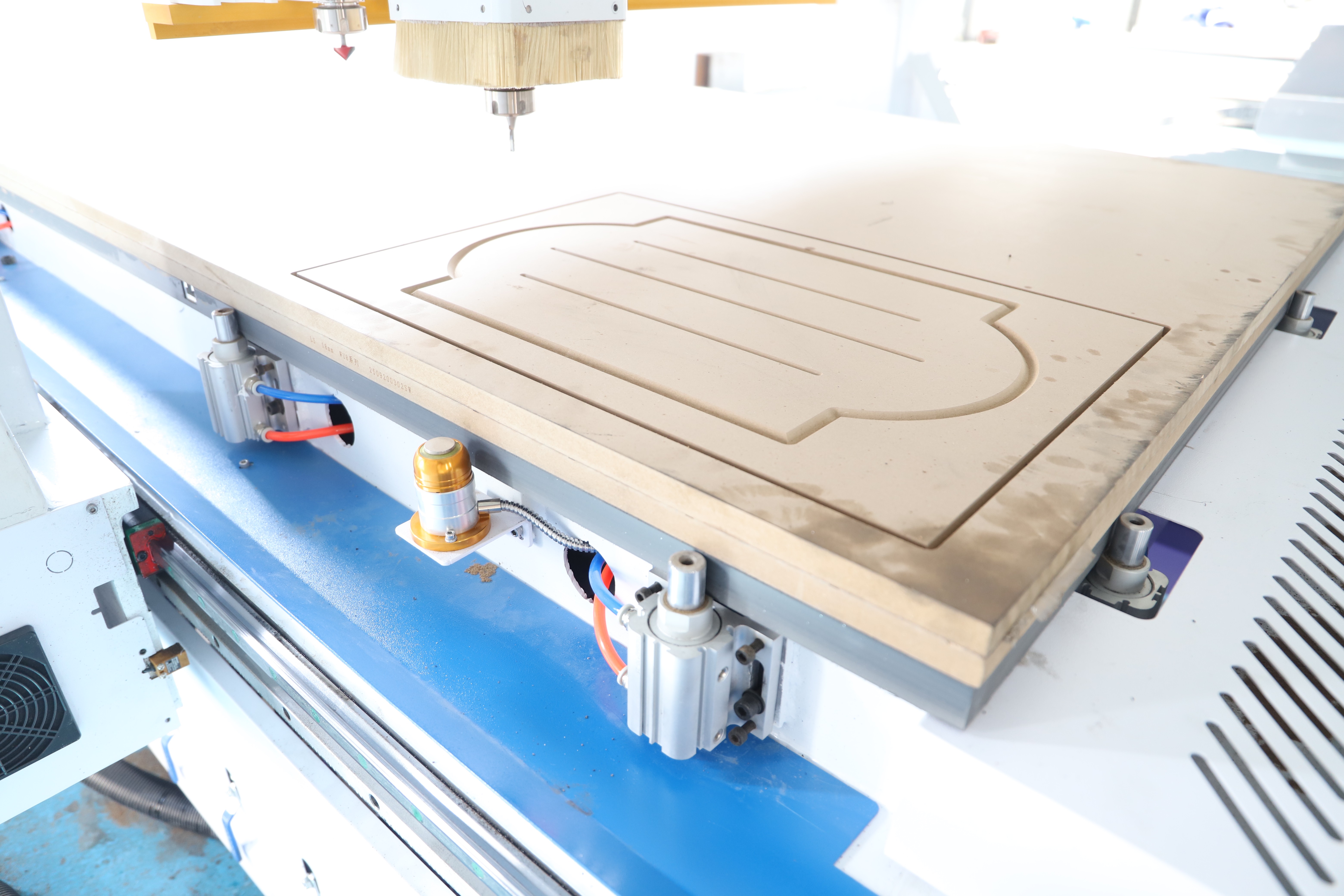

GC1325ATC-R cnc router (18)

GC1325ATC-R cnc router (19)

GC1325ATC-R cnc router (14)

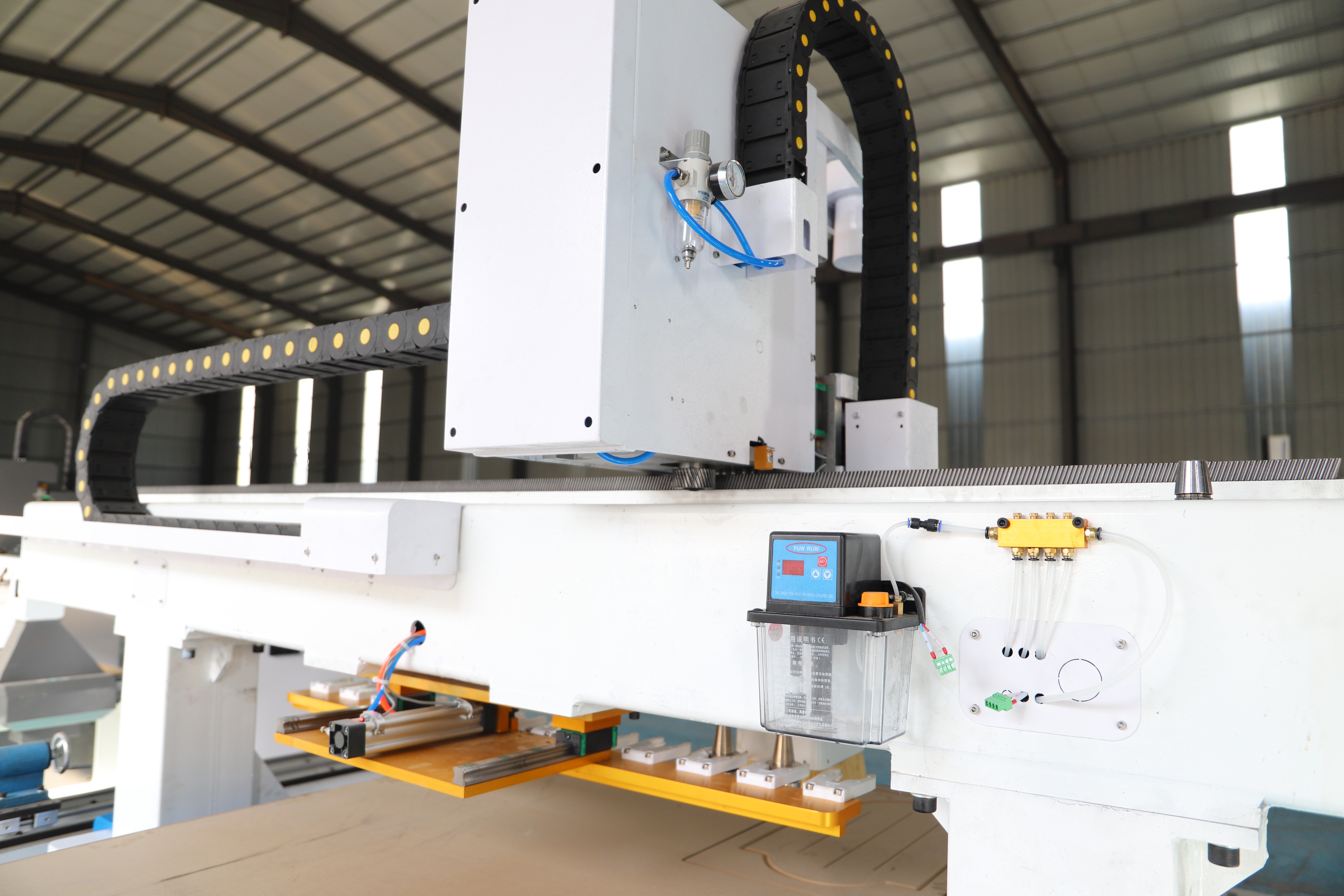

GC1325ATC-R cnc router (13)

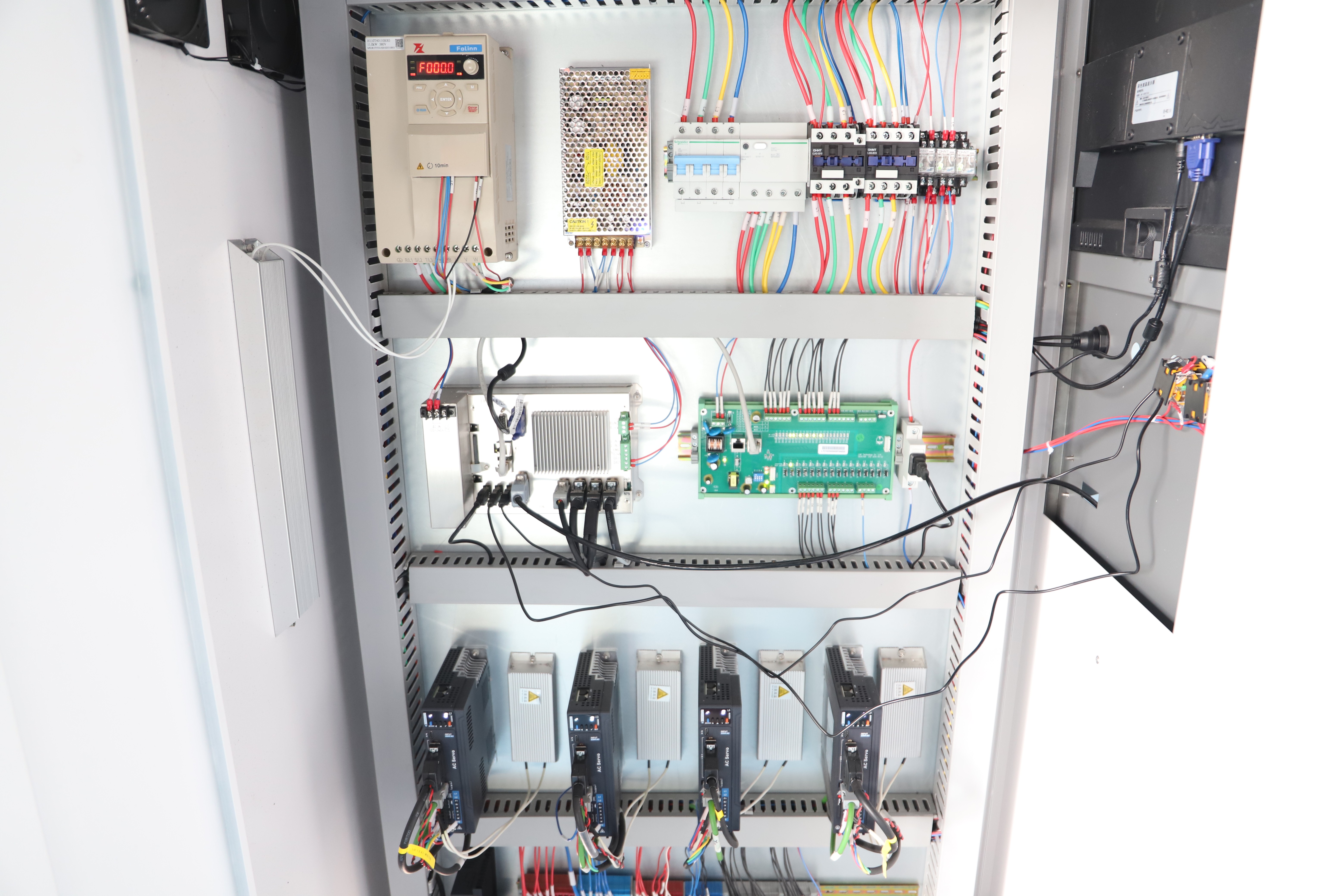

GC1325ATC-R cnc router (15)

GC1325ATC-R cnc router (3)
